深圳市尚明光電有限公司
Shenzhen City Shinmi photoelectric Co.,Ltd




RGB LED Amplifie,3528RGB LED Amplifie ,5050 RGB LED Amplifie
  • 12A
    144W
    DC12v
  • 瀏覽次數(shù):
  •
  • 產(chǎn)品介紹
  • RGB LED Amplifie,3528RGB LED Amplifie ,5050 RGB LED Amplifie

    Specifications

    1. RGB led amplifie
    2.Supply voltage: 5V,12V,24V
    3.Out put: three channels
    4.Output current: 4A (each channel)

    Summarization

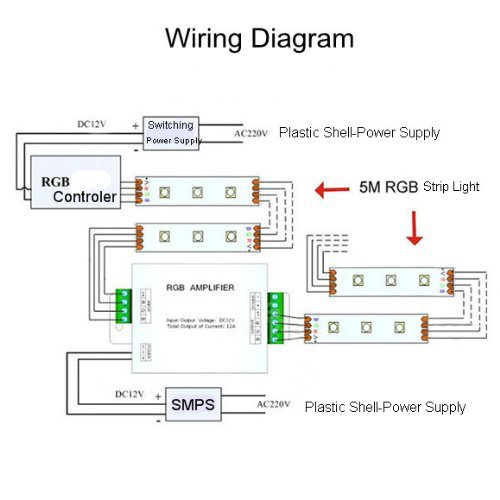

    RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.



     Technical parameters

      working temperature: -20-60°C

      supply voltage: DC5V, 12V ,18V, 24V optional(Specify the required voltage on order form)

      output: 3 channels

      connection mode: common anode

    external dimension:L105ΧW65ΧH25mm

    packing size: L122ΧW85ΧH42mm

    net weight: 115g

    gross weight: 145g

    static power consumption: <1W

    output current:<4A(each channel)

    output power: 5V:<60W,  12V:<144W,  24V:<288W
